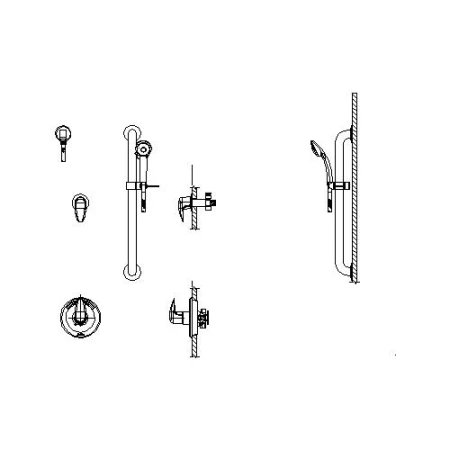

Delta Commercial 11T Tub and Shower Trim Package with Wall Mount Diverter

Product Features:

• Pressure Balance cartridge
• Limit stop for pre-setting Maximum temperature
• Integral checks in the cartridge prevent crossflow between Hot and Cold water inlets
• Non-Removable Blue/Red visual cover indicator for Cold, Mixing and Hot handle positions
• Standard 24″ Stainless Steel Bar with ADA Slide handshower and shower diverter valve-backflow protection provided by two integral check valves in handshower
• ADA Compliant diverter handle
• Handshower Flow Rates as listed unless optional Handshower #2 selected
• Handshower MAX: 1.5 GPM @ 80 PSI (5.7 L/min @ 552 kPa)
• Handshower MIN: 1.13 GPM @ 45 PSI (4.3 L/min @ 310 kPa)
• Handle#: 2 – Metal Lever Handle – ADA compliant – 85mm (3.33″)
• Optional 1753 mm (69″) Long Chrome plated Brass Double Spiral Hose (replaces standard hose)
• No fixed shower outlet supplied

Product Certifications:

• ASME A112.18.1 / CSA B125.1
• Pressure Balance Valve ASSE 1016
• Pressure Balance and Diverter lever handles ADA compliant to ICC/ANSI A117.1/ADA
• Handshower backflow protection provided by two integral certified check valves in series, which operate independently, ASME A112.18.3
• Handshower ADA compliant to ICC/ANSI A117.1/ADA
