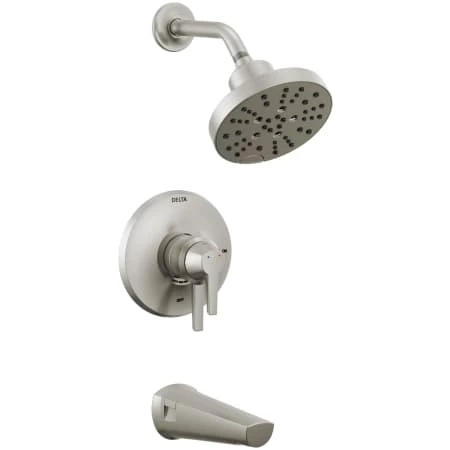

Delta Galeon Monitor 17 Series Dual Function Pressure Balanced Valve Trim Only with Integrated Volume Control – Less Rough-In Valve

Delta T17472 Features:

• Covered under Delta’s limited lifetime warranty
• Coordinates with products from the Galeon collection seamlessly
• Multi function shower head
• Dual function cartridge – two handles control volume and temperature independently
• Pressure balancing valve cartridge
• Tub and shower package includes: valve trim, shower head, shower arm and tub spout
• Designed to easily install with standard U.S. plumbing connections
• ADA compliant
• MultiChoice rough-in valve sold separately (when adding to cart, valve will be offered)

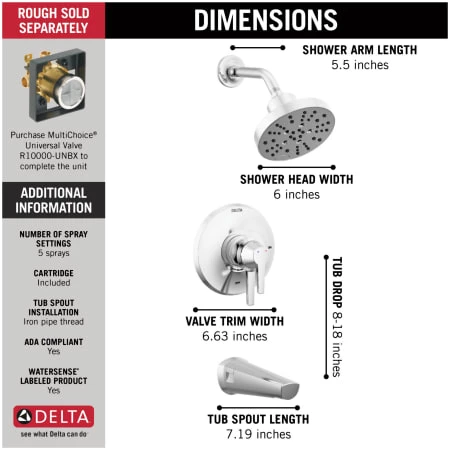

Shower Head Specifications:

• Multi function shower head
• Shower Head Flow Rate: 1.75 gallons-per-minute
• Shower Head Width: 6″
• Shower Head Height: 3-15/16″

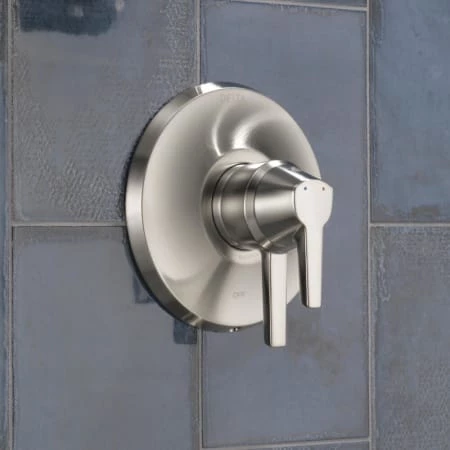

Trim Specifications:

• Diameter: 6-5/8″
• Maximum dial rotation adjustable between 90° and 180°

Tub Spout Specifications:

• Tub Spout Reach: 7-3/16″
• Overall Length: 8-5/8″
• Integrated diverter for switching between tub and shower applications
• Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX

Additional Product Technologies / Benefits:

• Independent Volume Control: Dual-control valve trims are what separate Delta showers from the competition. The top, smaller handle controls temperature, while the bottom, larger dial controls the water volume (flow rate). The distinct advantage to this is that you can set the temperature control to a temperature you like, and then leave it, turning the shower on and off each time with the volume control. You’ll never have to fuss with the temperature again.
• Monitor: Delta Monitor showers feature pressure balance valve cartridges, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe +/- 3°F. Monitor valves also feature a high-temperature limit stop that can be adjusted to suit your shower needs.
• MultiChoice Valve: Flexibility is the big benefit of the MultiChoice Universal Valve. Once the MultiChoice rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.
