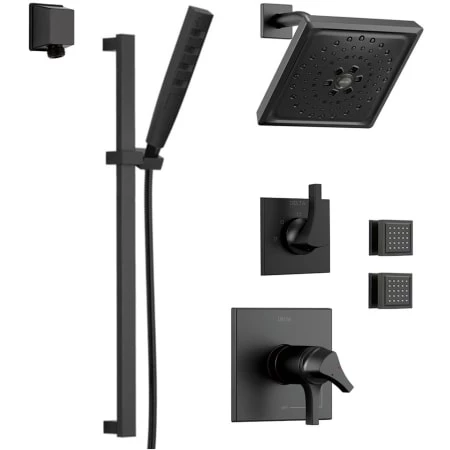

Delta Monitor 17 Series Dual Function Pressure Balanced Shower System with Integrated Volume Control, Shower Head, 2 Body Sprays and Hand Shower – Includes Rough-In Valves

Delta DSS-Zura-1703 Shower System Includes:

• Zura 17 Series Shower Set (T17274)
• Zura 6 Setting Diverter (T11974)
• Body Sprays Qty 2 (50150)
• Hand Shower Set with 24″ Slide Bar and 69″ Hose (51140)
• Wall Supply Elbow / Wall Union (50570)
• Mixing Rough-In Valve (R10000-UNWSHF) Shower Only NO Tub Outlet
• Diverter Rough-in Valve (R11000)

Delta DSS-Zura-1703 Features:

• Covered under Delta’s limited lifetime residential and 5 year limited commercial warranty
• Dual Function Pressure Balanced Valve Cartridge
• Separate Metal Lever Volume and Temperature Controls for Maximum Comfort
  • Handle Adjusts Volume; Dial on Handle Controls Temperature
• Monitor Scald-Guard Valve Keeps Water Temperature to +/-3°F
• 6 Setting 3 Port Diverter: 3 Individual Positions, 3 Shared Positions
• Optional non shared cartridge available RP71718
• Touch-Clean Body Sprays with 30 Degree Up and Down Adjustment
• 26-15/16″ slide bar included
• Matching hand shower with pause control and 60″ – 82″ hose
• Thermostatic rough-in valve with scald guard
• High quality finish – will resist rust and corrosion through everyday use

Delta DSS-Zura-1703 Technologies and Benefits:

• • MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.

• • Touch-Clean: The Delta soft, rubber Touch-Clean Spray Holes make it easy to wipe away unsightly calcium and lime buildup with the touch of a finger, helping prevent your product from developing a mineral blockage which could reduce water flow. While other kitchen faucets, shower heads and hand showers may require chemical cleaners and soaking time to dissolve mineral buildup, Delta products featuring Touch-Clean Spray Holes can be simply wiped clean for improved performance and an instantly refreshed look.

• • H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.

Valve Trim Specifications:

• Features integrated volume control
• Features a pressure balanced valve with Delta MultiChoice technology
• Swinging temperature dial allows for pin-point water control
• Rough-in valve is included with this package
• Valve Trim Height: 6-9/16″ (bottom to top)
• Valve Trim Width: 6-9/16″ (left to right)

Shower Head Specifications:

• Multi function shower head features full spray, pauce control, and H2Okinetic spray patterns
• Shower Head Flow Rate: 1.75 gallons-per-minute
• Shower Head Height: 3-3/16″ (spray nozzles to connection outlet)
• Shower Head Width: 7-5/8″ (left to right)

Hand Shower Specifications:

• Hose Length: 60″ – 82″
• Hand Shower Flow Rate: 1.75 gallons-per-minute
• Shower system includes wall supply for hand shower
