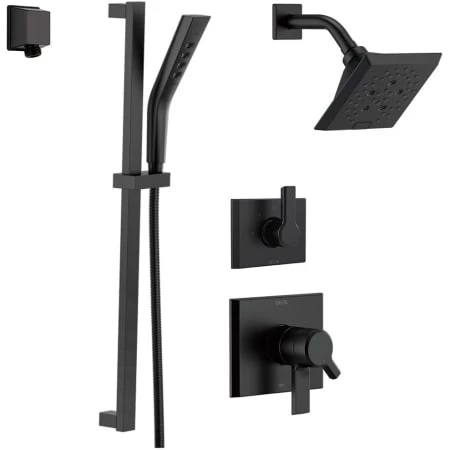

Delta Monitor 17 Series Dual Function Pressure Balanced Shower System with Integrated Volume Control, Shower Head, and Hand Shower – Includes Rough-In Valves

Delta DSS-Pivotal-1701 Shower System Includes:

• Pivotal 17 Series Shower Set (T17299)
• Pivotal 3 Setting Diverter (T11899)
• Hand Shower Set with 24″ Slide Bar and 69″ Hose (51799)
• Wall Supply Elbow / Wall Union (50570)
• Mixing Rough-In Valve (R10000-UNWSHF) Shower Only NO Tub Outlet
• Diverter Rough-in Valve (R11000)

Delta DSS-Pivotal-1701 Features:

• Covered under Delta’s limited lifetime residential and 5 year limited commercial warranty
• Dual Function Pressure Balanced Valve Cartridge
• Separate Metal Lever Volume and Temperature Controls for Maximum Comfort
  • Handle Adjusts Volume; Dial on Handle Controls Temperature
• Monitor Scald-Guard Valve Keeps Water Temperature to +/-3°F
• 3 Setting 2 Port Diverter: 2 Individual Positions, 1 Shared Position
• Optional non shared cartridge available RP71717
• Note: the RIGHT side diverter port MUST be capped
• 26-15/16″ slide bar included
• Matching hand shower with pause control and 60″ – 82″ hose
• High quality finish – will resist rust and corrosion through everyday use
• Integrated Service Stops on Mixing Rough-In Valve

Delta DSS-Pivotal-1701 Technologies and Benefits:

• • MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.

• • H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.???????

Valve Trim Specifications:

• Features integrated volume control
• Features a pressure balanced valve with Delta MultiChoice technology
• Swinging temperature dial allows for pin-point water control
• Rough-in valve is included with this package
• Valve Trim Height: 5-1/8″ (bottom to top)
• Valve Trim Width: 7″ (left to right)

Shower Head Specifications:

• Multi function shower head featuring full spray, massage, full spray with massage, pause control, and H2Okinetic spray patterns
• Shower Head Flow Rate: 1.75 gallons-per-minute
• Shower Head Height: 3-3/4″ (spray nozzles to connection outlet)
• Shower Head Width: 5-3/4″ (left to right)

Hand Shower Specifications:

• Hose Length: 60″ – 82″
• Hand Shower Flow Rate: 1.75 gallons-per-minute
• Shower system includes wall supply for hand shower
