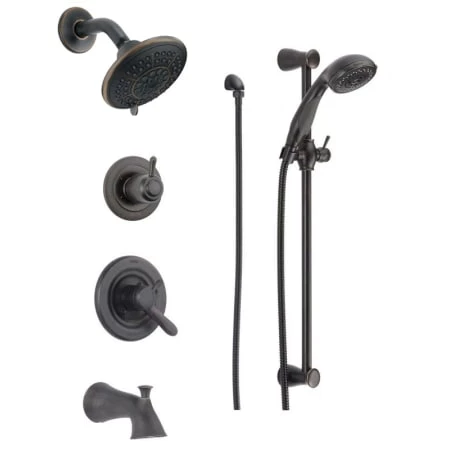

Delta Monitor 17 Series Pressure Balanced Tub and Shower System with Volume Control, Shower Head, Hand Shower, and Slide Bar – Includes Rough-In Valves

Delta DSS-Lahara-1704 Shower System Includes:

• Lahara 17 Series Tub and Shower Set (T17438)
• 3 Setting Diverter (T11800)
• Hand Shower Set with 24″ Slide Bar and 70″ Hose (57014)
• Wall Supply Elbow / Wall Union (50560)
• Mixing Rough-In Valve (R10000-UNWS)
• Diverter Rough-in Valve (R11000)

Do you like this Delta shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Delta shower.

Delta DSS-Lahara-1704 Shower System Features:

• Covered under Delta’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
• Premier finishing process – finish will resist rust and corrosion through everyday use
• Multi function shower head
• Dual function cartridge – separate volume and temperature controls
• Pressure balancing valve cartridge with scald guard
• 3 setting 2 port diverter: 2 individual positions and 1 shared position
• Note: the RIGHT side diverter port MUST be capped
• Designed for use with standard 1/2″ or 3/4″ U.S. plumbing connections
• All necessary mounting hardware is included

Delta DSS-Lahara-1704 Product Technologies / Benefits:

• • Monitor®: Delta Monitor® showers feature pressure balance valve cartridges, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe +/- 3°F. Monitor® valves also feature a high-temperature limit stop that can be adjusted to suit your shower needs.

• • MultiChoice® Valve: Flexibility is the big benefit of the MultiChoice® Universal Valve. Once the MultiChoice® rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.

• • Independent Volume Control: Dual-control valve trims are what separate Delta showers from the competition. The top, smaller handle controls temperature, while the bottom, larger dial controls the water volume (flow rate). The distinct advantage to this is that you can set the temperature control to a temperature you like, and then leave it, turning the shower on and off each time with the volume control. You’ll never have to fuss with the temperature again.

• • Touch Clean: Only Delta offers showers equipped with Touch Clean soft, rubber nubbins (spray holes) that allow you to easily wipe away calcium and lime build-up with the touch of a finger. This is particularly helpful for areas with hard water.

Delta DSS-Lahara-1704 Shower Valve Trim / Diverter Trim Specifications:

• Valve trim dial rotations adjustable between 90° and 180°
• Temperature control includes pre-set safety stop with override
• Three function diverter with 2 individual positions, 1 shared position
• Valve trim features integrated volume control handle
• Valve Trim Diameter: 7-1/2″
• Diverter Trim Diameter: 4-1/2″
• Extra secure mounting assemblies
• All necessary mounting hardware and valves are included

Delta DSS-Lahara-1704 Hand Shower / Slide Bar Specifications:

• Multi-function hand shower with three spray patterns – full body spray, massage spray, and aerated spray
• Dual check valves prevent and protect from backflow
• Wall supply is included with hand shower and slide bar
• Flow Rate: 2.5 gallons-per-minute
• Slide Bar Length: 24″
• Hose Length: 70″
• All necessary mounting hardware included

Delta DSS-Lahara-1704 Shower Head Specifications:

• Multi function shower head with touch clean nubbins
• Shower Head Diameter: 5-1/8″
• Shower Head Height: 2-5/8″
• Flow Rate: 1.75 gallons-per-minute
• Shower Arm Reach: 5-1/2″
• All necessary mounting hardware included

Delta DSS-Lahara-1704 Tub Spout Specifications:

• Features a classic pull-up integrated diverter
• Unrestricted flow rate allows for rapid filling of tub
• Tub Spout Reach: 6-3/4″
• All necessary mounting hardware included
