Delta TempAssure 17T Series Thermostatic Shower System with Shower Head, Handshower, and Slide Bar – Includes Integrated Volume Control and Rough-In Valves

All items in this package are covered under Delta’s faucet and finish limited lifetime warranty

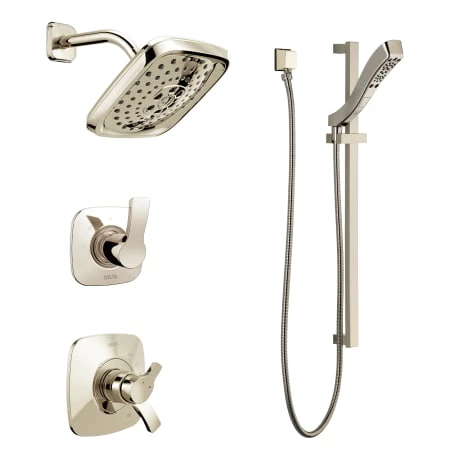

Delta DSS-Tesla-17T01-H2O Shower System Includes:

• Tesla Thermostatic Valve Trim and Shower Head (T17T252)
• Tesla 3-Function Diverter Trim (T11852)
• Tesla Multi-Function Handshower, Slide Bar, and Hose (51552)
• Wall Supply Elbow (50570)
• MultiChoice® Universal Rough Valve Body (R10000-UNWSHF)
• Diverter Rough Valve Body (R11000)

Do you like this Delta shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Delta shower.

Delta DSS-Tesla-17T01-H2O Valve Trim / Diverter Trim Specifications:

• Temperature dial swings 180° – includes pre-set safety stop with override
• Separate dial controls volume of water
• Diverter trim controls direction of water from mixing valve to custom shower systems
• 3 setting 2 port diverter: 2 individual positions and 1 shared position
• Note: the RIGHT side diverter port MUST be capped
• Lever handles are ADA compliant
• Valve Trim Dimensions: 7″ H x 7″ W
• Diverter Trim Dimensions: 4-1/2″ H x 4-1/2″ W
• All necessary valves are included in this package

Delta DSS-Tesla-17T01-H2O Shower Head / Shower Arm Specifications:

• Multi-function shower head features three spray patterns – full body spray, H2Okinetic spray, and pause
• Shower Head Dimensions: 7-5/8″ W x 7-5/8″ L
• Shower Head Height: 3-7/16″
• Flow Rate: 2 gallons-per-minute
• Shower Arm Length: 7″

Delta DSS-Tesla-17T01-H2O Handshower / Slide Bar Specifications:

• Multi-function handshower features four spray patterns – full body spray, H2Okinetic spray, massage spray, and pause
• Adjustable sliding handshower holder
• Wall supply is included
• Handshower Height: 7-3/16″
• Flow Rate: 2 gallons-per-minute
• Slide Bar Length: 24″ (measured from one installation point to the other)
• Overall Slide Bar Length: 26-15/16″
• Hose Length: 60″

Delta DSS-Tesla-17T01-H2O Shower System Technologies / Benefits:

• • H2Okinetic: Delta’s proprietary H2Okinetic technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2Okinetic showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.

• • TempAssure: Delta’s higher-end dual function TempAssure thermostatic valve cartridges work like a thermostat. They use a wax and spring configuration to measure and monitor the temperature of the water and automatically adjust the hot/cold mix to precisely maintain water temperatures within a safe +/- 3°F.

• • Integrated Volume Control: This Smart Feature provides separate controls for the temperature and volume on one trim plate, allowing you to set the temperature and keep it consistent shower after shower.

• • MultiChoice Valve: Flexibility is the big benefit of the MultiChoice Universal Valve. Once the MultiChoice rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.
